The Professional Tuner’s Choice

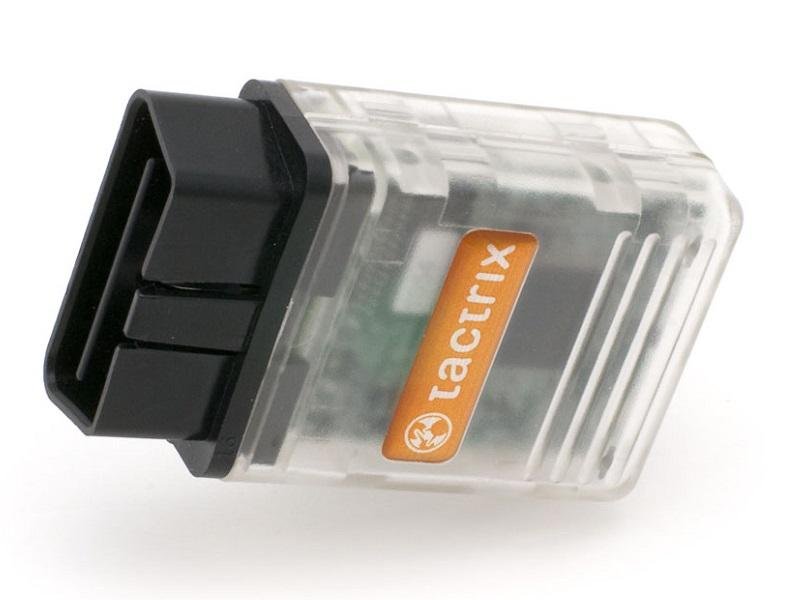

The OpenPort 2.0 is more than just a cable; it is a sophisticated 72MHz hardware interface capable of handling the high-speed data transfers required for ECU “flashing” (rewriting the engine’s software). Its ability to apply specific voltages (GND or 5V–25V) to various OBD pins—an essential requirement for entering “reflash mode” on older vehicles—sets it apart from generic ELM327 adapters.
Key Technical Pillars & Features:
-
J2534 PassThru Versatility: Beyond tuning, the OpenPort 2.0 works with various OEM diagnostic software suites (such as Toyota Techstream or JLR SDD), making it a budget-friendly alternative to expensive factory VCIs.
-
Subaru & Mitsubishi Specialist: It is the only hardware specifically designed to work with EcuFlash. This kit includes the necessary adapters for the 2001–2005 WRX and pre-CAN Mitsubishi Evo models (5–9), ensuring you can jump straight into tuning.
-
Standalone Datalogging: By inserting a microSD card, you can configure the device to log data automatically based on specific triggers (like RPM or Throttle Position). This is invaluable for capturing intermittent faults or tuning “pulls” without a bulky laptop sliding around the cabin.
-
Expandable Ecosystem: Featuring a 2.5mm stereo connector, the OpenPort can integrate data from Innovate Motorsports wideband sensors, allowing you to log Air/Fuel Ratios (AFR) directly alongside your ECU data for precise tuning.
-
Field Upgradeable: The internal firmware can be updated via USB, ensuring the device stays compatible with new protocols and software improvements as they are released.
Technical Specifications
| Feature | Specification |
| Processor | 32-bit RISC / 72 MHz |
| Protocols | CAN 2.0, ISO15765, ISO9141, KWP2000 (Dual K-Line) |
| Voltage Control | 5V – 25V (Applied to OBD pins 1, 3, 9, 11, 12, 13) |
| Datalogging | MicroSD / MicroSDHC Slot (Laptop-free) |
| Connectivity | USB 2.0 (Mini-USB port) |
| Interface | J2534 PassThru (Windows DLL included) |
| Status Display | RGB Multi-color LEDs |
