Intelligent Diagnostics for the Modern Shop

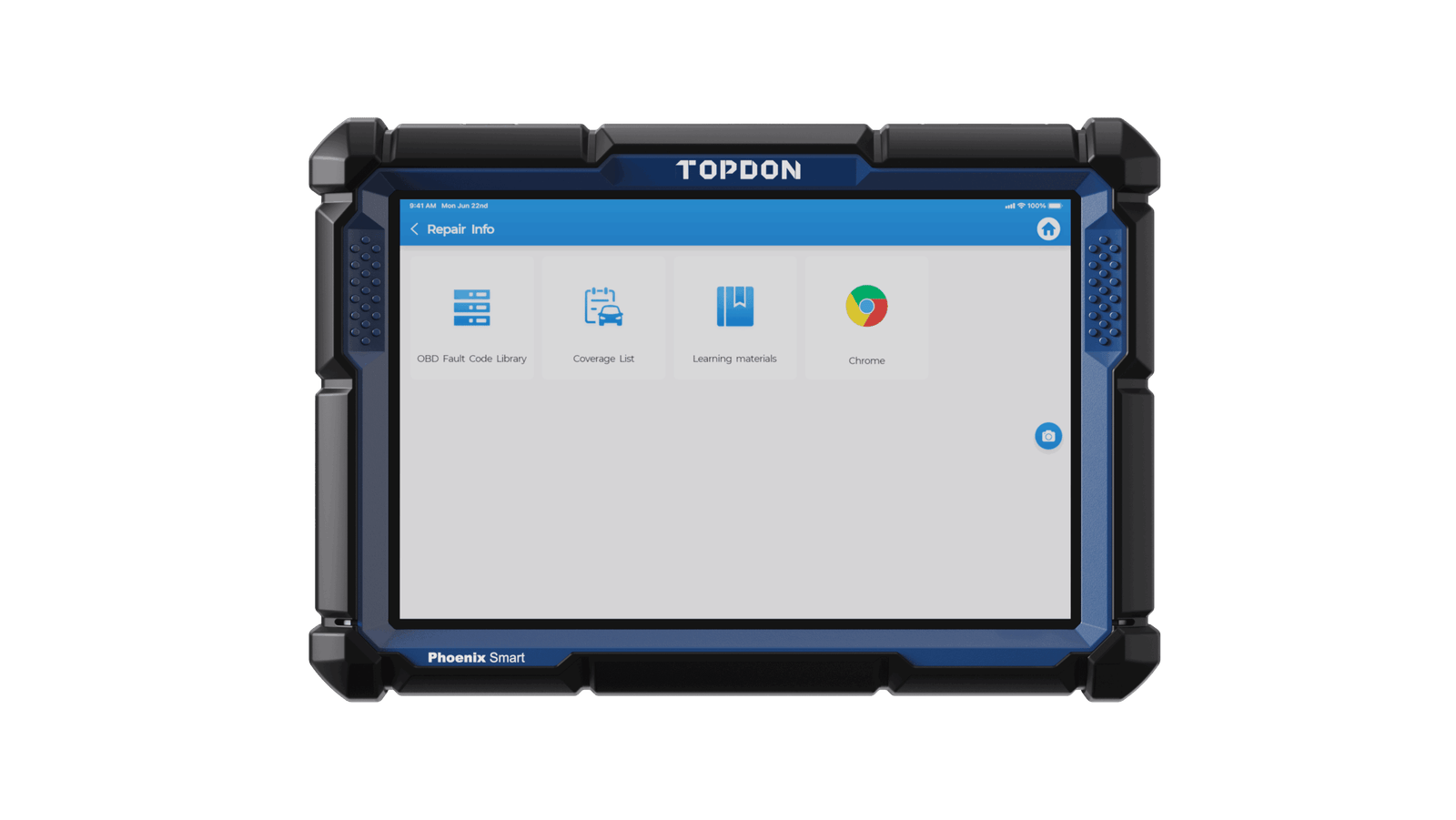

The Phoenix Smart moves beyond traditional code reading. By integrating Topology Mapping, it provides a color-coded, visual layout of every module on the vehicle’s network, allowing you to instantly identify communication failures or system health status. Whether you are performing a simple oil reset or a complex online module parameterization, this tool provides a guided, step-by-step path to ensure the job is done correctly on the first attempt.
Key Technical Pillars & Semantic Entities:
-
The Phoenix MDCI Pro VCI: The “brain” of the operation. This interface is not just a dongle; it’s a high-speed communication device that supports all critical modern protocols, meaning you can perform OE-level diagnostics on 2024-2026 vehicles without needing to outsource to the dealer.
-
Cloud-Based Programming: Access direct-from-manufacturer server data for over 13 major brands (Mercedes, BMW, VAG, Porsche, Land Rover, etc.). This bypasses the need for costly individual OEM tool subscriptions.
-
Topology Network Mapping: Displays the entire vehicle CAN network as a clear, interactive map, making it easy to isolate intermittent faults in specific sub-systems (e.g., Infotainment, ADAS, or Gateway).
-
Guided VAG Procedures: For Volkswagen, Audi, Skoda, and SEAT, the tool provides specific, code-triggered guided routines that walk you through complex adaptations and codings.
-
ADAS & Expansion Ready: The Phoenix Smart is fully modular. It can be paired with the Phoenix ADAS Mobile frame for sensor calibration, or connected to external peripherals like the Phoenix Scope (4-channel oscilloscope) or TC005 Thermal Imager.
Hardware & Software Specifications:
| Feature | Specification |
| Display | 10.1-inch LCD Touchscreen (1280 x 800) |
| Processor | 4-Core 2.0 GHz / 4GB RAM |
| Storage | 128GB ROM |
| Battery | 12,600mAh (High capacity for full-day work) |
| Updates | 2 Years of Free Software Updates Included |
| Protocols | DoIP, CAN-FD, J2534, D-PDU, RP1210 |
