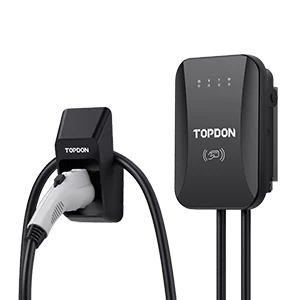

Topdon PulseQ AC 1Phase 7Kw EV Charger

Smart, Efficient Home Infrastructure

The PulseQ is designed to maximize the “cost-per-mile” efficiency of owning an electric vehicle. By utilizing the built-in Wi-Fi/Bluetooth connectivity, users can manage their energy consumption directly from their smartphone. The app serves as a digital dashboard, allowing you to track “fuel” savings compared to gasoline and ensure your car is always ready to go without stressing the local grid during peak hours.

Key Technical Pillars & Features:

• Three Flexible Start Modes:

  • App Control: Remote start/stop, scheduling, and live monitoring.

  • Plug-and-Play: Immediate charging upon connection (ideal for secure private garages).

  • RFID Card: Secure tap-to-start access, preventing unauthorized use in shared parking areas or outdoor driveways.

• Rugged All-Weather Design: Encased in a flame-retardant PC + ASA housing, the unit holds an IP65 water/dust resistance rating and an IK10 impact rating, making it durable enough to survive direct exposure to rain, snow, or accidental bumps.



• Comprehensive Safety Suite: The internal electronics feature eight layers of protection, including Type A + DC 6mA leakage protection (RCD), lightning protection, and over-temperature sensors that automatically throttle the current if the unit becomes too hot.



• Adjustable Current: The output can be tuned between 6A and 32A via the app. This is crucial for homes with limited electrical capacity or for those looking to match their EV charging speed with the output of their solar panel arrays.



• Simplified Installation: The compact, wall-mounted design includes a high-quality 5-meter (or optional 7.5m) copper/PVC cable that remains flexible even in freezing temperatures ($-30°C$).



Technical Specifications
